INTERNAL (A CLASS) HOARDING
KIOSK / WORK ZONE
EXTERNAL WIND RATED
CONSTRUCTION PORTAL INTERNAL & EXTERNAL
BALUSTRADE REPLACEMENT
DUST ENCAPSULATION
12-24 SECURITY BARRIER
DISPLAY WALL
ZERO-TRIP FENCE BASE
TITAN’s primary features are
- ZERO need for Supports or Cross beams
- ZERO need for Supports Cross Beams for Engineering Certification
- ZERO need for connection to floor or ceiling finishes, TITAN is 100% free standing
- 70 x 45 MGP10 only, readily available from your local timber supplier, e.g. Bunnings
- One system, multiple configurations; all supported by Manuals
- Easiest and Safest installation of any hoarding system
- Certified for 12mm MDF, 15mm Ply, 16mm Laminate & 50mm EPS (cold room panel) Other panel thickness are available
- TITAN can be installed in just three easy steps
- Designed to be easily modified
- Can be re-configured to suit site requirements
TITAN is the lightest & most advanced Engineer Certified construction hoarding system available.
TITAN’s Engineer Certified Internal (A Class Hoarding) / Shopfront Hoarding free stands up to a massive 7.2 metres high! As TITAN’s counterweighted hoardings are compact and modular, they are simple to install, a breeze to modify and removed with ease.
A Class / Shopfront Hoardings provide isolation of the work site from public areas by restricting site access to authorised personnel only. This allows construction work to take place without TITAN’s A Class Hoardings not only provide Engineer Certified Public Protection™ but when you install a TITAN A Class Hoarding it looks great too!
TITAN’s modular counter-weighted construction hoardings are tough, secure, safe and simple to install, modify and remove. TITAN can be used with an array of panel types and thickness making them perfect for any location. TITAN Hoarding Systems have been used in shopping centres, airports, hospitals, hotels, construction sites and more
TITAN uses cost effective and readily available 70 x 45 MGP10 or the TITAN ECO aluminium pine replacement extrusion. TITAN is 100% free standing meaning you will not have to complete any make good work. ZERO fixings to floors or ceilings means ZERO additional cost!
TITAN enables Builders, Shopfitters, Retailers, the public and or other existing / aspiring Hoarding companies to build or have built an Engineer Certified internal or external Hoarding.
TITAN’s Engineer Certified Kiosk or Work Zone hoarding is a 1.2 metres high free-standing counter weighted hoarding that is easy to construct, remove and modify. Kiosk or Work zone hoarding creates a barrier between the work site and the public and restricts unauthorised access to the work zone. Perfect for hoarding shopping centre kiosks, food court retailers, malls and airports or hoarding any other work site where lines of sight need to be maintained.
TITAN uses cost effective and readily available 70 x 45 MGP10 or the TITAN ECO aluminium pine replacement extrusion.
TITAN, enables Builders, Shopfitters, Retailers, the public and or other existing / aspiring Hoarding companies to build or have built an Engineer Certified internal or external construction Hoarding.
TITAN’s Engineer Certified External Wind Rated Hoardings are capable of free-standing up to 3.6m high and have been designed and pre-engineered with a wind loading capable of up to 79 m/s (284 + km/h) free standing. No fixings or ground penetration required! Higher wind loadings can be achieved with bracing.
The capabilities of TITAN’s Engineer Certified External Wind Rated Hoardings are unrivalled.
The Australian climate is harsh and unforgiving so to ensure the safety of your employees and the public, choose Australia’s number one hoarding system. No other hoarding system comes close to delivering the same wind loadings that TITAN can achieve.
Note: site specific details including sheltering and topography are to be considered when determining the correct wind loading requirement for a site.
TITAN has developed dozens of Wind rated configurations to deal with every site requirement. The TITAN ECO aluminium pine replacement extrusion makes a perfect addition to the chosen TITAN Hoarding System configuration.
TITAN, enables Builders, Shopfitters, Retailers, the public and other or inspiring Hoarding companies to build or have built an Engineer Certified Hoarding.
TITAN’s Engineer Certified Construction Portal (Tunnel) allows safe access through a construction site. The portal can be used internally or externally and with flexible heights which are completely freestanding, TITAN’s modular hoarding systems can convert any construction site into a clean, safe and aesthetically pleasing passage point for your customers. The portal can even be dressed in graphics, lights and other finishes! Check out our gallery or contact our friendly team for ideas for your next project.
TITAN, enables Builders, Shopfitters, Retailers, the public and or other existing / aspiring Hoarding companies to build or have built an Engineer Certified internal or external Hoarding.
TITAN has Australia’s only Engineer Certified free standing temporary Balustrade Replacement / Crowd Rated System. With height ranging from 1.2 to 3.6 metres, this is a completely free standing counterweight hoarding. TITAN’s temporary Balustrade Replacement / Crowd Rated System is perfect for safe work zone delineation helping to prevent danger between pedestrians and construction areas. TITAN’s temporary Balustrade Replacement / Crowd Rated System allows the public complete to safely traverse areas unaware of the construction site around them.
TITAN has developed dozens of configuration to deal with every site requirement. TITAN’s temporary Balustrade Replacement / Crowd Rated System is suitable for use with TITAN’s ECO aluminium pine replacement extrusion, bringing additional strength to an already unbreakable hoarding system.
TITAN, enables Builders, Shopfitters, Retailers, the public and other or aspiring Hoarding companies to build or have built an Engineer Certified internal or external Hoarding.
TITAN Dust Encapsulated hoardings have no limits to height or size, are completely free standing and the light and modular design allows for deployment and removal with relative ease. You can remove concrete from a trading Shopping Mall and know the dust is 100% contained to your work zone.
In addition to dust encapsulated hoardings, dust suppression can be used above internal or external TITAN Hoarding Systems to contain flying particles, debris and dust. Workplace Health & Safety laws may require you to contain your worksite so to ensure you’re covered, contact the friendly team at TITAN. More information on dust suppression can be found on our consumables page.
TITAN enables Builders, Shopfitters, Retailers, the public and or other existing / aspiring Hoarding companies to build or have built an Engineer Certified internal or external Hoarding.
TITAN’s 12-24 Security Barrier was designed for areas where a secure work zone barrier is required while maintaining line of sight.
TITAN’s 12-24 Security Barrier has no limits to height or size and as with all of TITAN’s free standing counterweight hoardings, they are light and modular which allows for simple installation, easy modification and quick removal.
A typical use for a TITAN 12-24 Security Barrier is:
- An airport baggage handling area where Customs or Security need to maintain line of sight.
- A trading shopping centre mall where sight lines can’t be disrupted because of lease agreements.
- Any location where security is priority
TITAN enables Builders, Shopfitters, Retailers, the public and or other existing / aspiring Hoarding companies to build or have built an Engineer Certified internal or external Hoarding.
Make a statement with your hoarding! TITAN’s Display Wall can be installed as a visual aid, a media wall backdrop, to advertise products or services or simply as a statement feature.
The TITAN Display Wall has no limits to height or size and TITAN’s free standing counterweight hoardings are light and modular which allows for quick and easy installation, simple modification and can be removed with ease.
TITAN Display Walls are Engineer Certified and perfect for:
- Shopping centre malls and or anywhere a temporary display is required
- Supporting green wall displays
- Supporting TV’s, large monitors or any type of digital display
- Product displays
Whatever your requirement, we have the solution for you! We will help bring your vision to life.
TITAN enables Builders, Shopfitters, Retailers, the public and or other existing / aspiring Hoarding companies to build or have built an Engineer Certified internal or external Hoarding.
TITAN Zero Trip fence base, an Australian Award-winning product, converts any standard 32mm OD temporary fence into a pedestrian safe, trip-free solution.
The TITAN Zero Trip temporary fence base is a patented design that removes the protruding fence feet eliminating the risk of trips and falls to the public.
TITAN revolutionised the fencing industry by eliminating the risk of trip hazards on all pedestrian areas and pathways. You’ll never have to worry about a pedestrian tripping over a temporary fence base again.
The TITAN Zero Trip temporary fence base also allows for increased wind loading capability by increasing the pivot distance by an additional 400mm and allows for a heavier counterweight if required. Each base can stack up to 4x the number of counterweights when compared to a standard temporary fencing panel.
The bases are machine welded for consistency and feature an anti-tamper design with the option to securely lock counterweights to the fence base.
Engineer certified, pedestrian safe temporary fencing is now available for your construction site.
The TITAN Zero Trip temporary fence base is suitable for use with either TITAN counterweights or standard temporary fence weights and there is a full installation manual detailing the different configurations available.

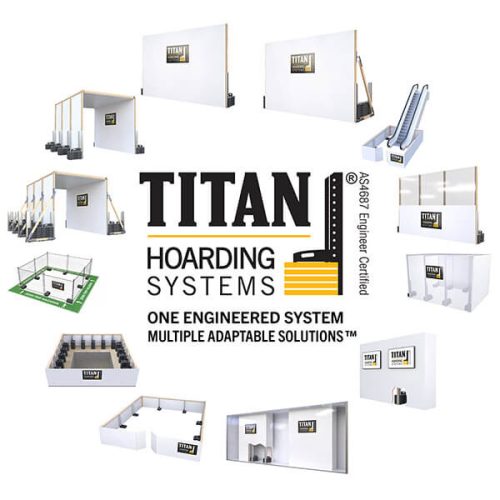

ONE ENGINEERED SYSTEM
MULTIPLE ADAPTABLE SOLUTIONS™
MODIFYING IS A BREEZE: Lift a few weights off, modify and replace weights.
REMOVAL IS SO SIMPLE: with ZERO DAMAGE TO FINISHES, so ZERO REPAIRS!
